Ursa Minor
the Little Bear
the Little Bear
Fixed J2000 coordinates
Image downloads

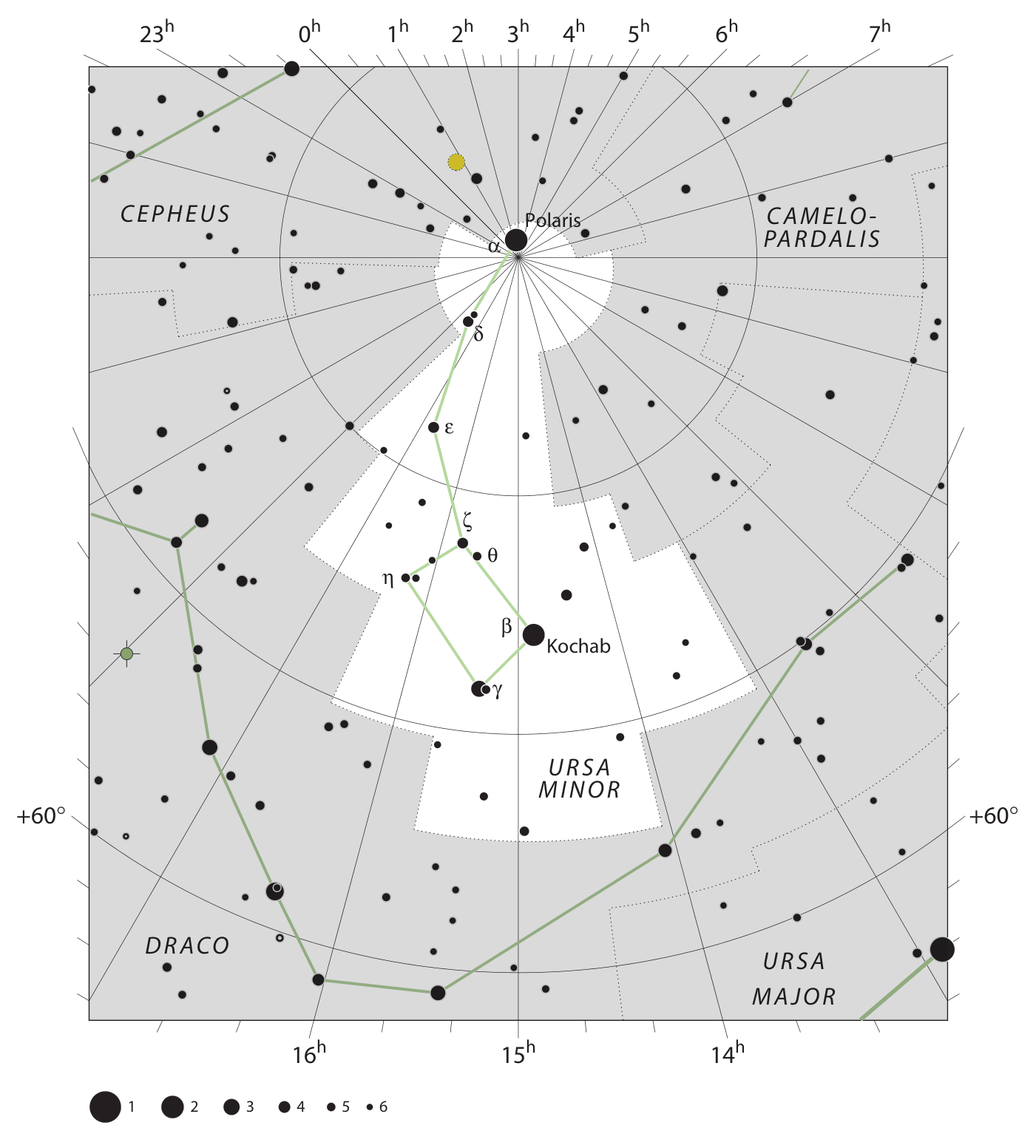

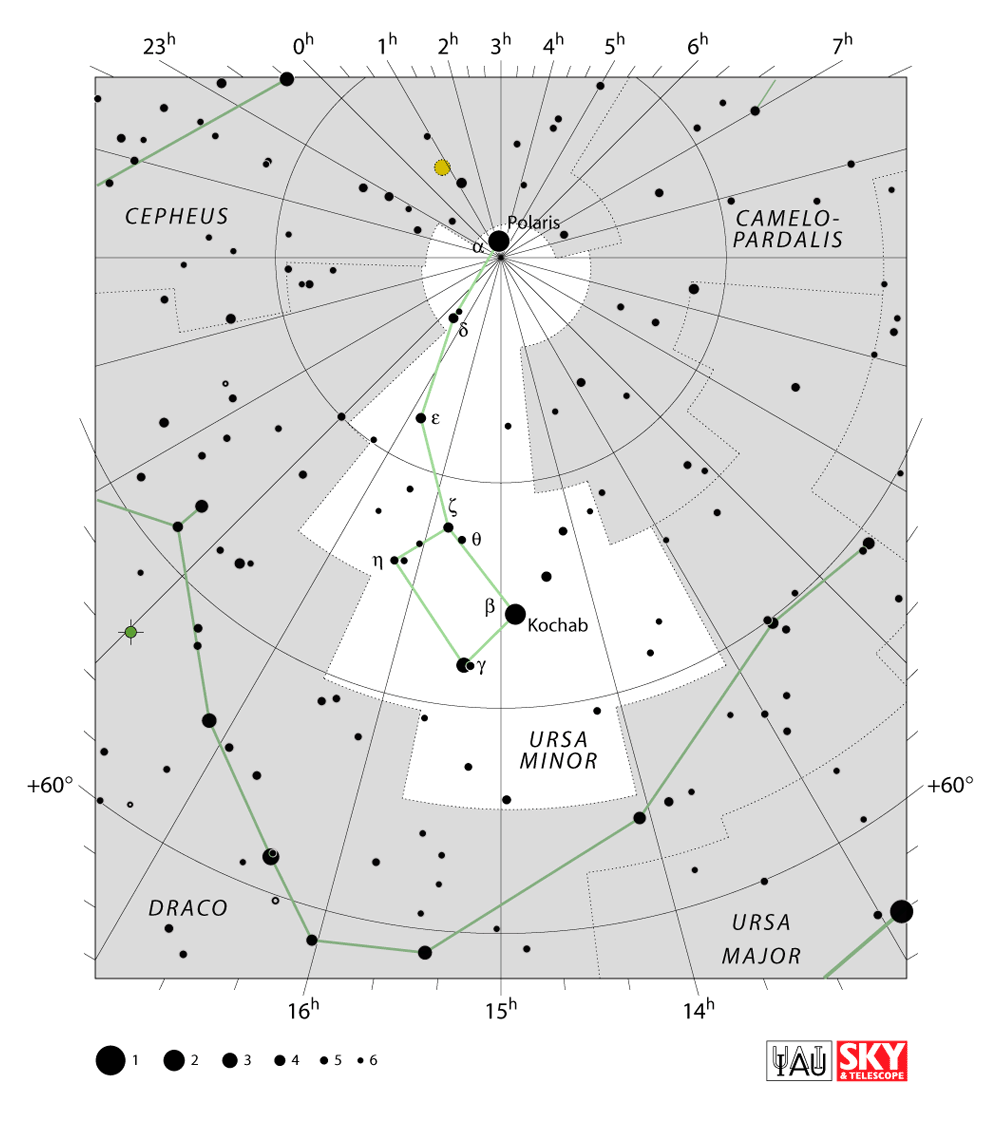

How to read this chart
Dots mark stars, and their sizes indicate brightness. Stars appear dark on light charts and light on dark charts. Green lines show a constellation pattern. The surrounding grid gives right ascension and declination.
This is a fixed reference map, rather than a view of tonight’s sky.
Read the full chart guide →Boundary coordinates
The boundary marks a sky region; it is separate from the green star pattern. These files preserve ordered coordinate points in the J2000 reference system.
View coordinate format & sample
Right ascension uses hours, minutes and seconds. Declination is in degrees. Convert right ascension to degrees with 15 × (hours + minutes/60 + seconds/3600).
RA (h m s) | Dec (degrees) | Abbreviation 13 03 16.9470 | 76.3289108 | UMI 13 04 23.3937 | 69.3293610 | UMI 14 02 36.1947 | 69.3991165 | UMI 14 03 16.9333 | 65.3996506 | UMI 15 41 19.0957 | 65.6023483 | UMI
The 0h / 24h meridian is continuous. A coordinate jump there should not be treated as a straight line across a flat map.
