Draco
the Dragon

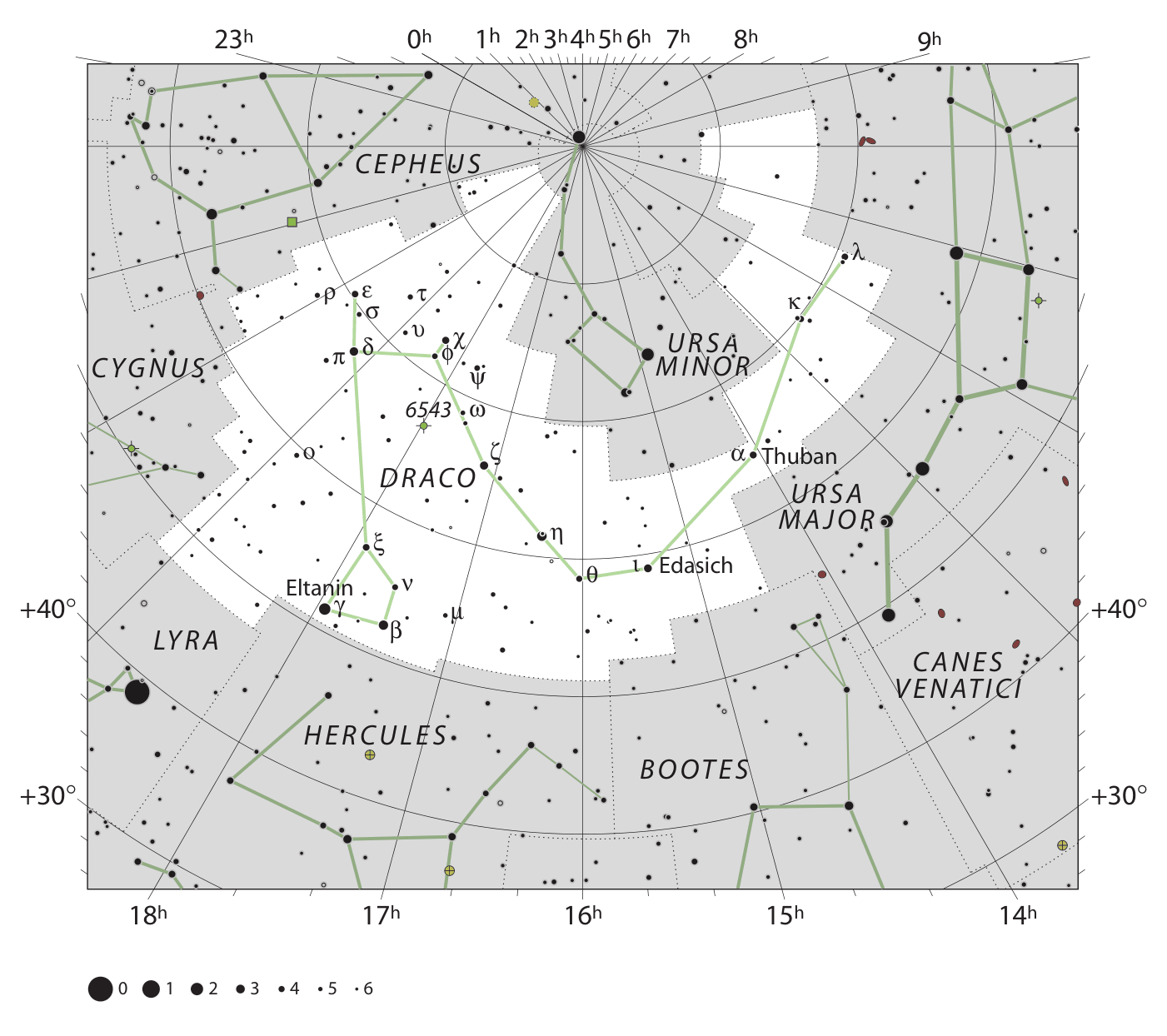

Star chart
J2000the Dragon
Fixed J2000 coordinates

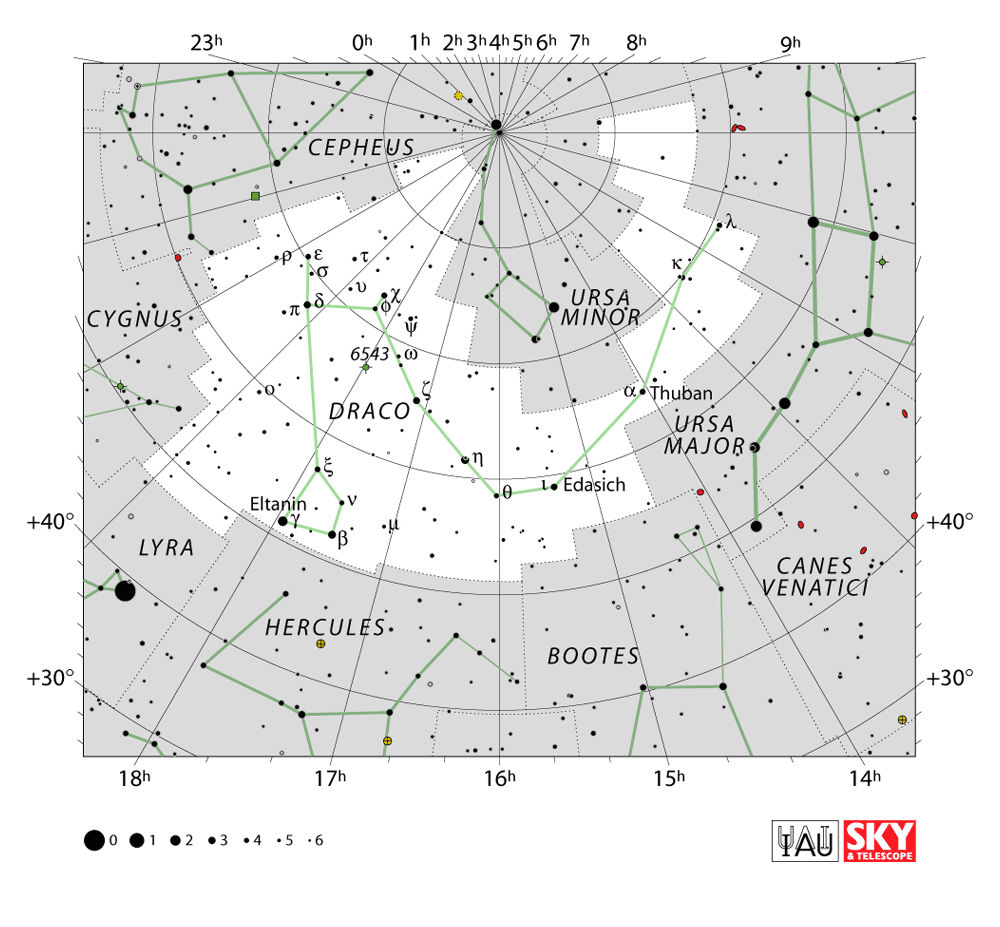

This image was made with reference to IAU charts.View IAU original · Opens in a new tab
Image downloads
How to read this chart
Dots mark stars, and their sizes indicate brightness. Stars appear dark on light charts and light on dark charts. Green lines show a constellation pattern. The surrounding grid gives right ascension and declination.
This is a fixed reference map, rather than a view of tonight’s sky.
Read the full chart guide →Boundary coordinates
The boundary marks a sky region; it is separate from the green star pattern. These files preserve ordered coordinate points in the J2000 reference system.
Draco50 boundary pointsDownload TXT →
View coordinate format & sample
Right ascension uses hours, minutes and seconds. Declination is in degrees. Convert right ascension to degrees with 15 × (hours + minutes/60 + seconds/3600).
RA (h m s) | Dec (degrees) | Abbreviation 09 22 27.7137 | 72.9741364 | DRA 09 28 45.8868 | 81.4677658 | DRA 10 52 25.2999 | 81.3396072 | DRA 10 51 16.4635 | 79.3401794 | DRA 11 38 07.5801 | 79.3083420 | DRA
The 0h / 24h meridian is continuous. A coordinate jump there should not be treated as a straight line across a flat map.
