Cetus
the Sea Monster
the Sea Monster
Fixed J2000 coordinates
Image downloads

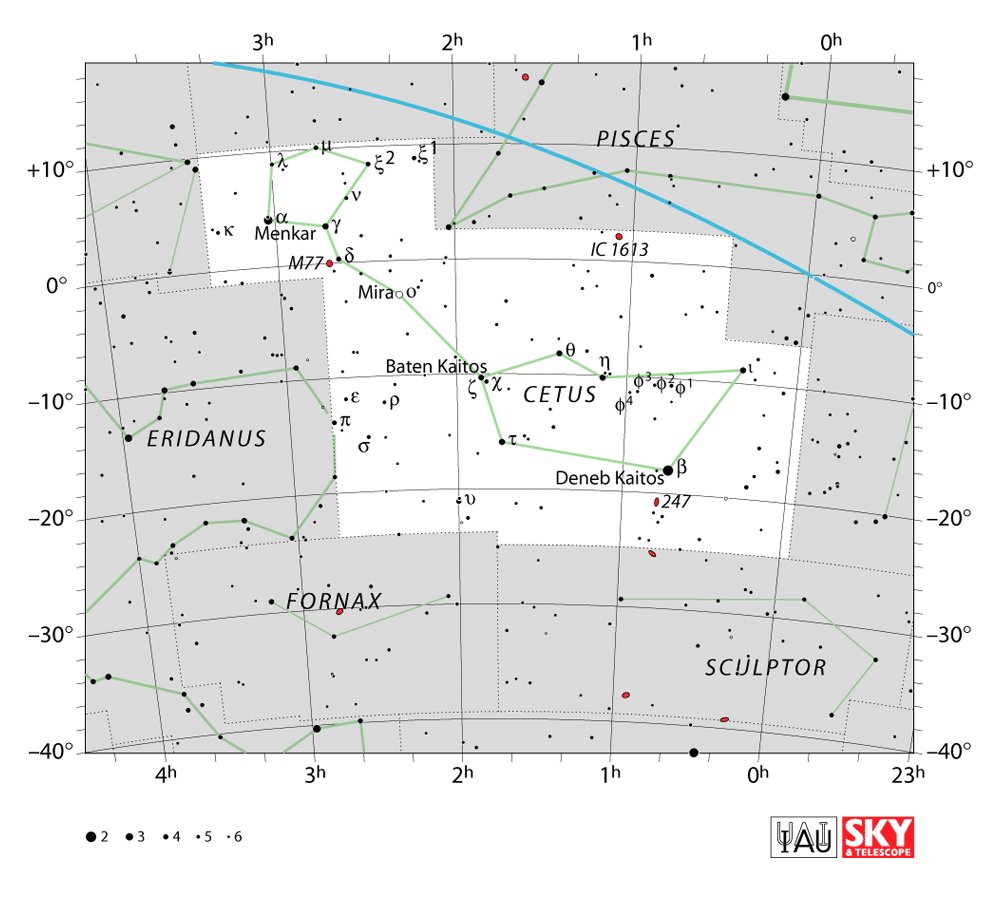

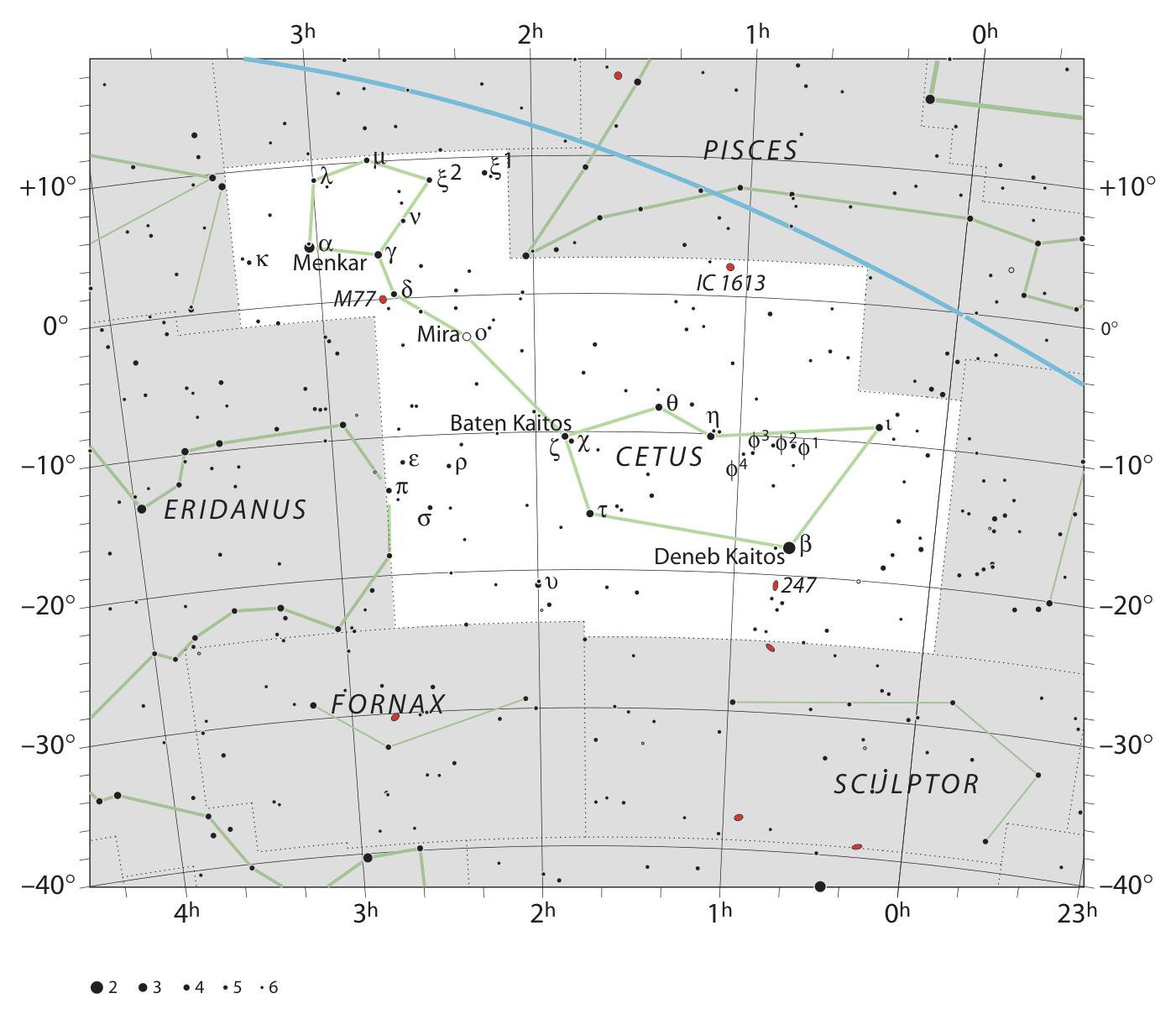

How to read this chart
Dots mark stars, and their sizes indicate brightness. Stars appear dark on light charts and light on dark charts. Green lines show a constellation pattern. The surrounding grid gives right ascension and declination.
This is a fixed reference map, rather than a view of tonight’s sky.
Read the full chart guide →Boundary coordinates
The boundary marks a sky region; it is separate from the green star pattern. These files preserve ordered coordinate points in the J2000 reference system.
View coordinate format & sample
Right ascension uses hours, minutes and seconds. Declination is in degrees. Convert right ascension to degrees with 15 × (hours + minutes/60 + seconds/3600).
RA (h m s) | Dec (degrees) | Abbreviation 00 26 24.3189 | 0.6925398 | CET 00 26 24.9090 | 2.6925383 | CET 02 06 27.6639 | 2.5978806 | CET 02 06 39.6594 | 10.5143948 | CET 03 23 47.1387 | 10.3632069 | CET
The 0h / 24h meridian is continuous. A coordinate jump there should not be treated as a straight line across a flat map.
