Andromeda
the Chained Maiden
the Chained Maiden
Fixed J2000 coordinates
Image downloads

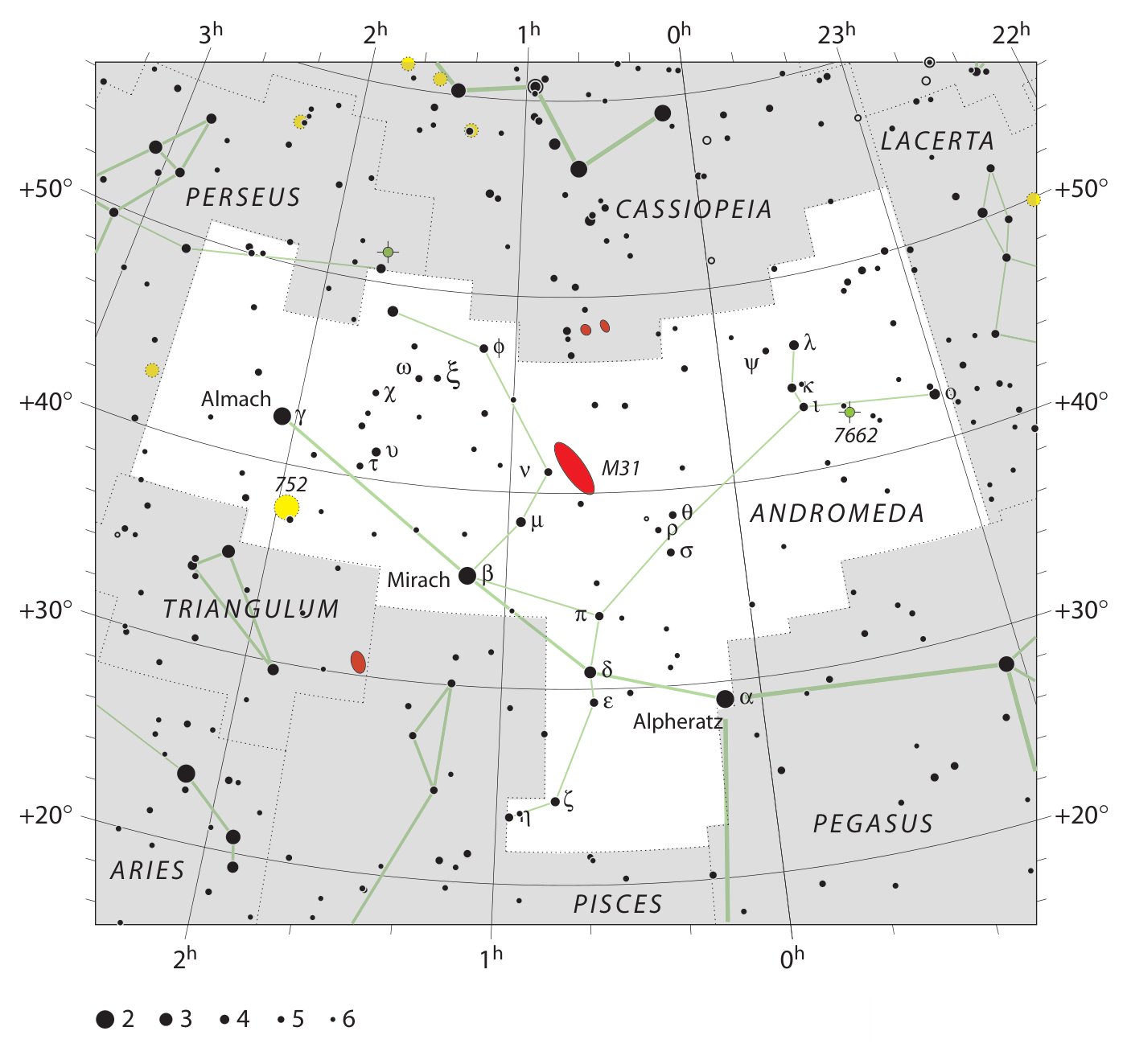

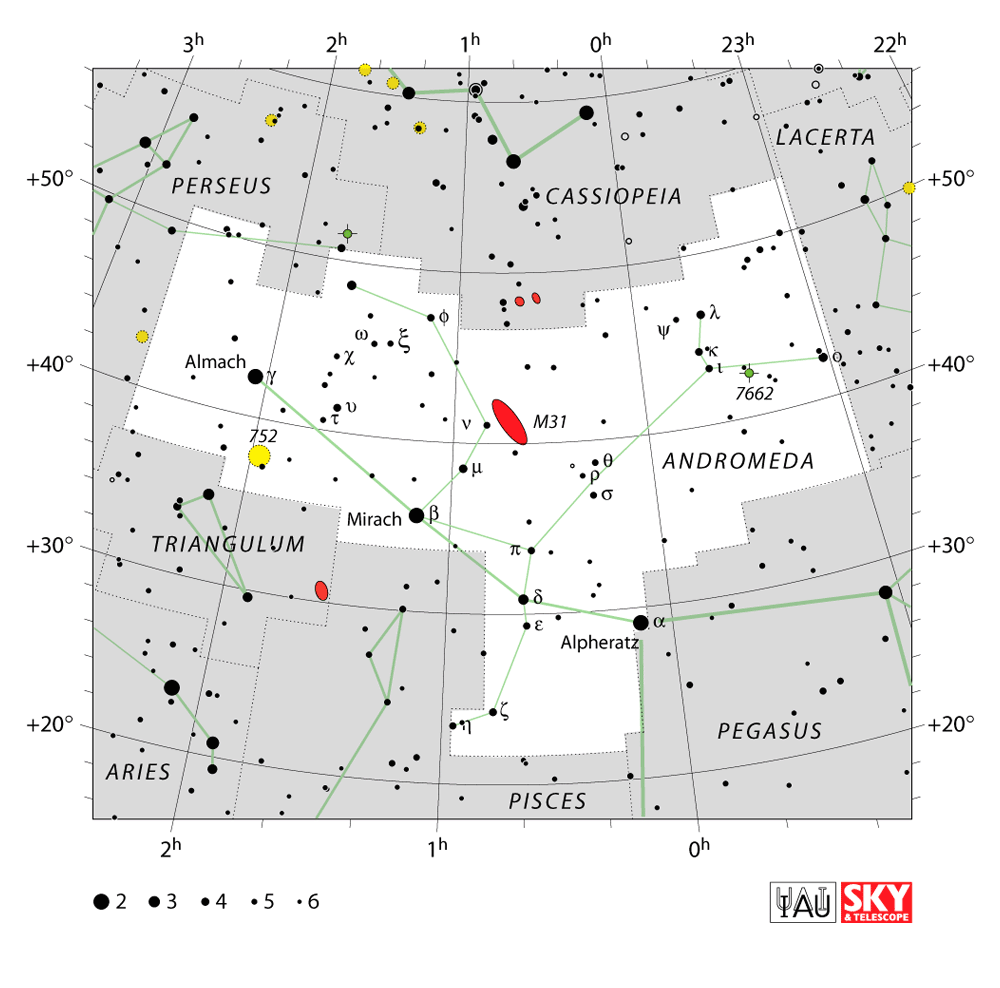

How to read this chart
Dots mark stars, and their sizes indicate brightness. Stars appear dark on light charts and light on dark charts. Green lines show a constellation pattern. The surrounding grid gives right ascension and declination.
This is a fixed reference map, rather than a view of tonight’s sky.
Read the full chart guide →Boundary coordinates
The boundary marks a sky region; it is separate from the green star pattern. These files preserve ordered coordinate points in the J2000 reference system.
View coordinate format & sample
Right ascension uses hours, minutes and seconds. Declination is in degrees. Convert right ascension to degrees with 15 × (hours + minutes/60 + seconds/3600).
RA (h m s) | Dec (degrees) | Abbreviation 22 57 51.6729 | 35.1682358 | AND 22 57 22.2843 | 53.1680298 | AND 23 25 48.6945 | 53.1870041 | AND 23 25 51.7638 | 50.6870193 | AND 23 41 04.9337 | 50.6929131 | AND
The 0h / 24h meridian is continuous. A coordinate jump there should not be treated as a straight line across a flat map.
